Jiangxi SOP Precision Intelligent Manufacturing Technology Co.,Ltd.
Jiangxi SOP Precision Intelligent Manufacturing Technology Co.,Ltd.
| Place of Origin: | Jiangxi,China |
| Brand Name: | SOP |
| Model Number: | SOPBH-101 |
| Application: | Force measurement |
| Minimum Order Quantity: | 1 piece |
| Packaging Details: | To be packed with small box. |
| Delivery Time: | 3-5 working days after shipment by Express |
| Payment Terms: | T/T,Wechat |
Description:

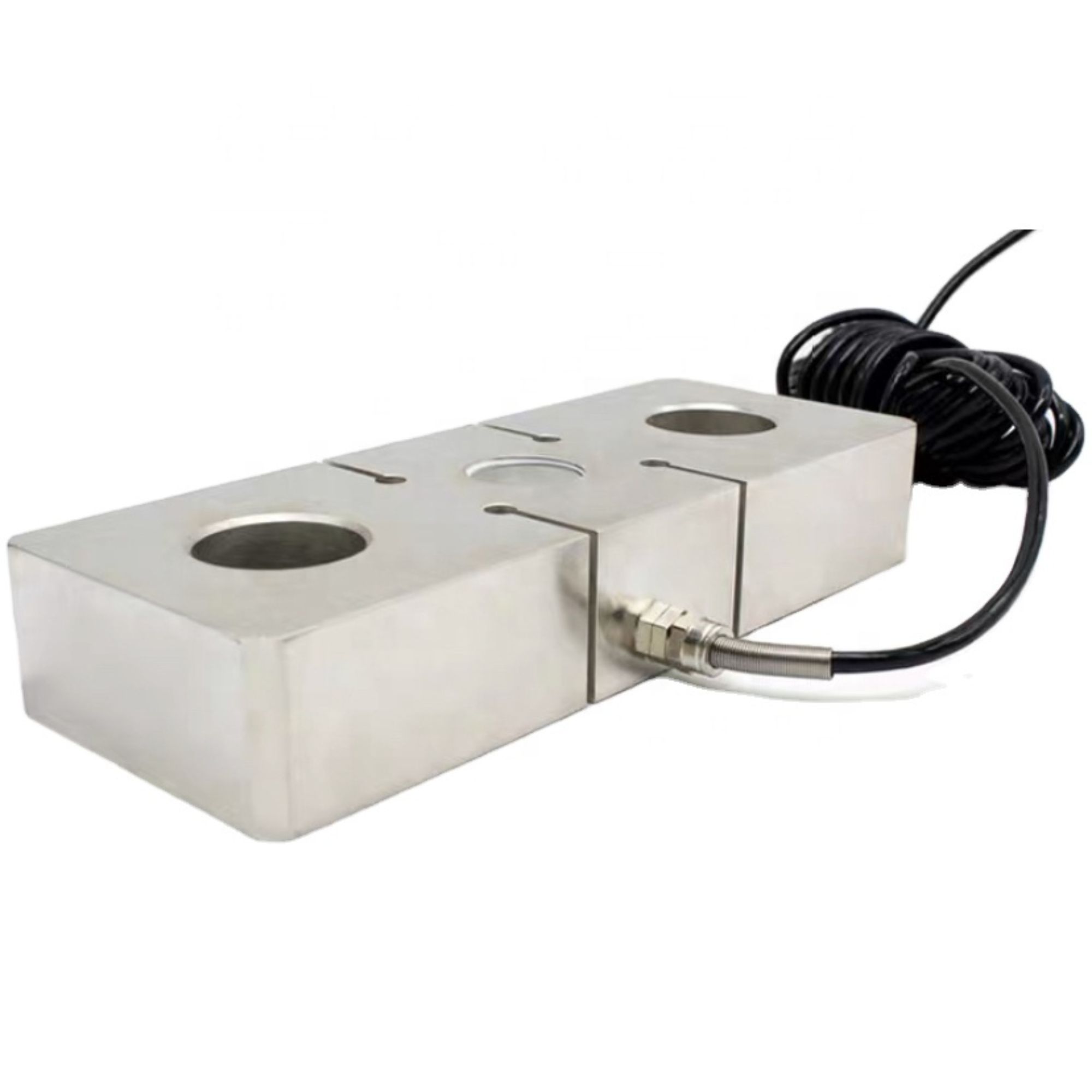

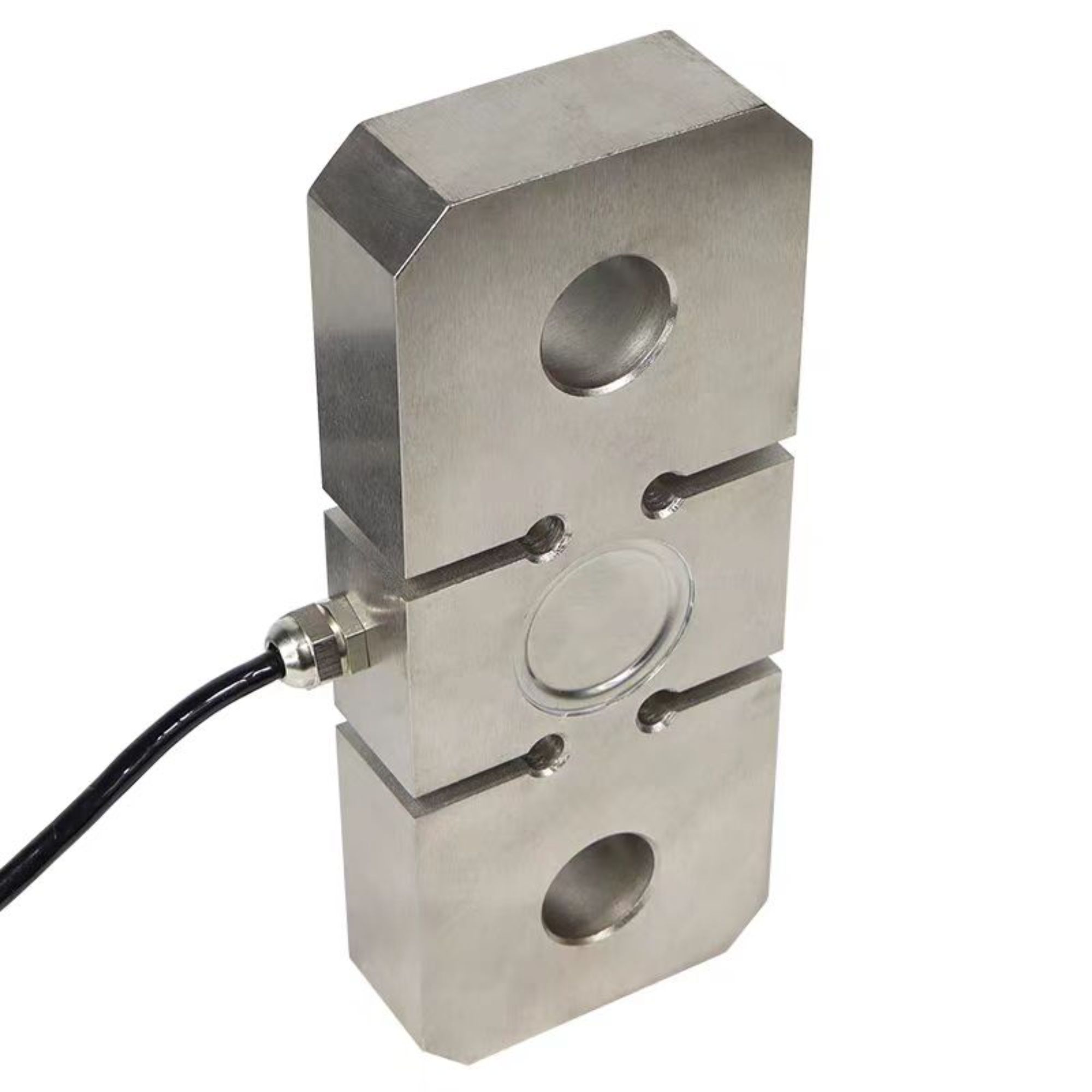

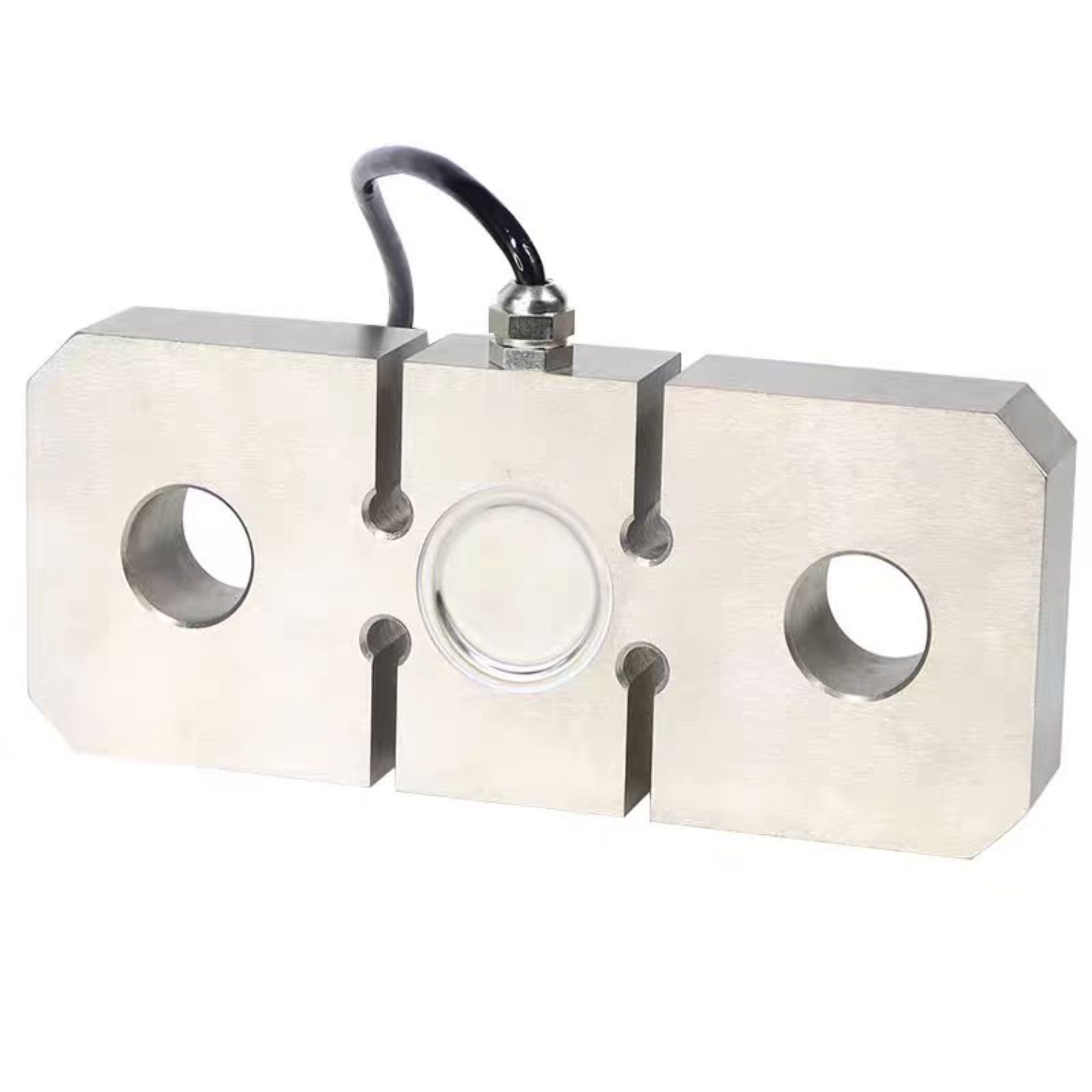

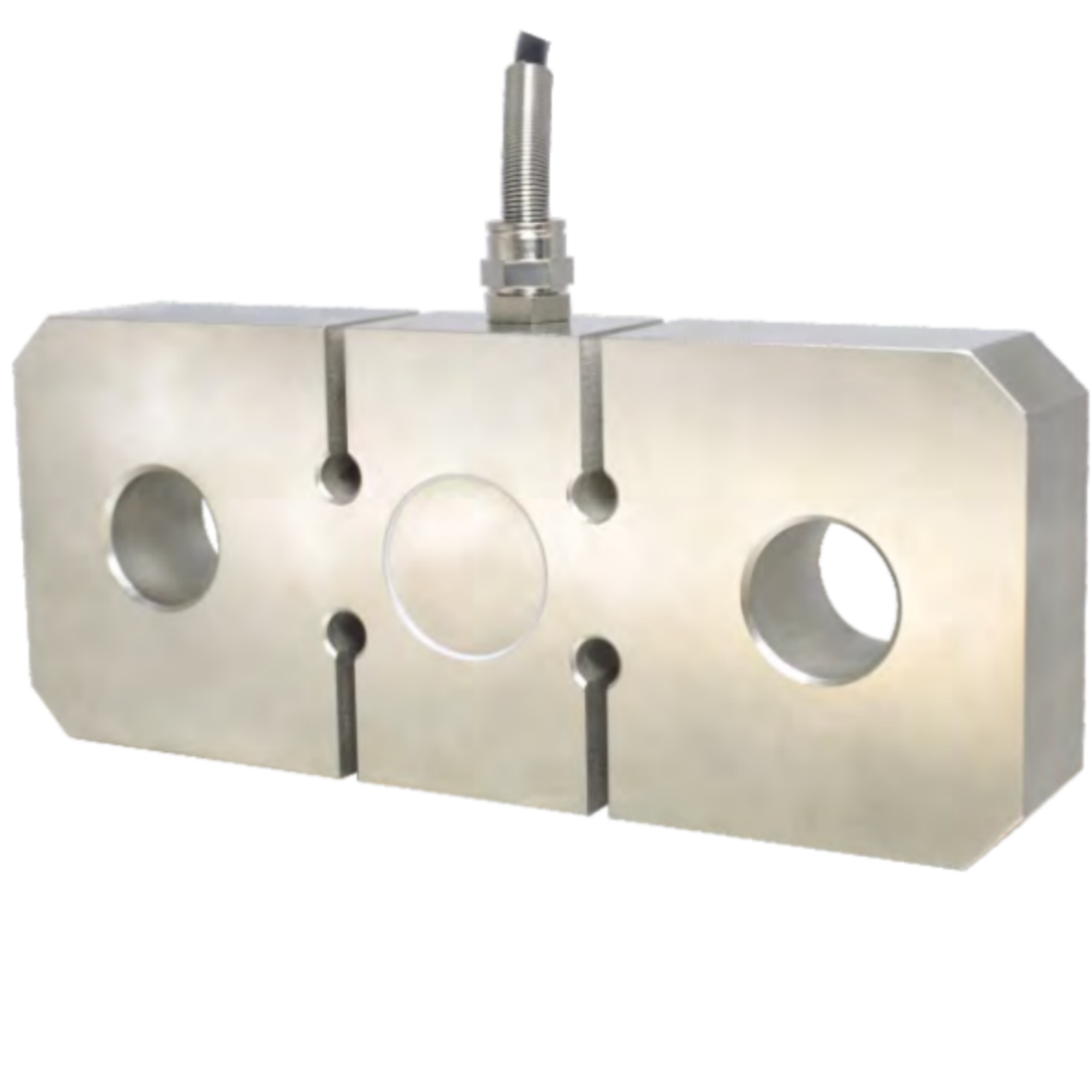

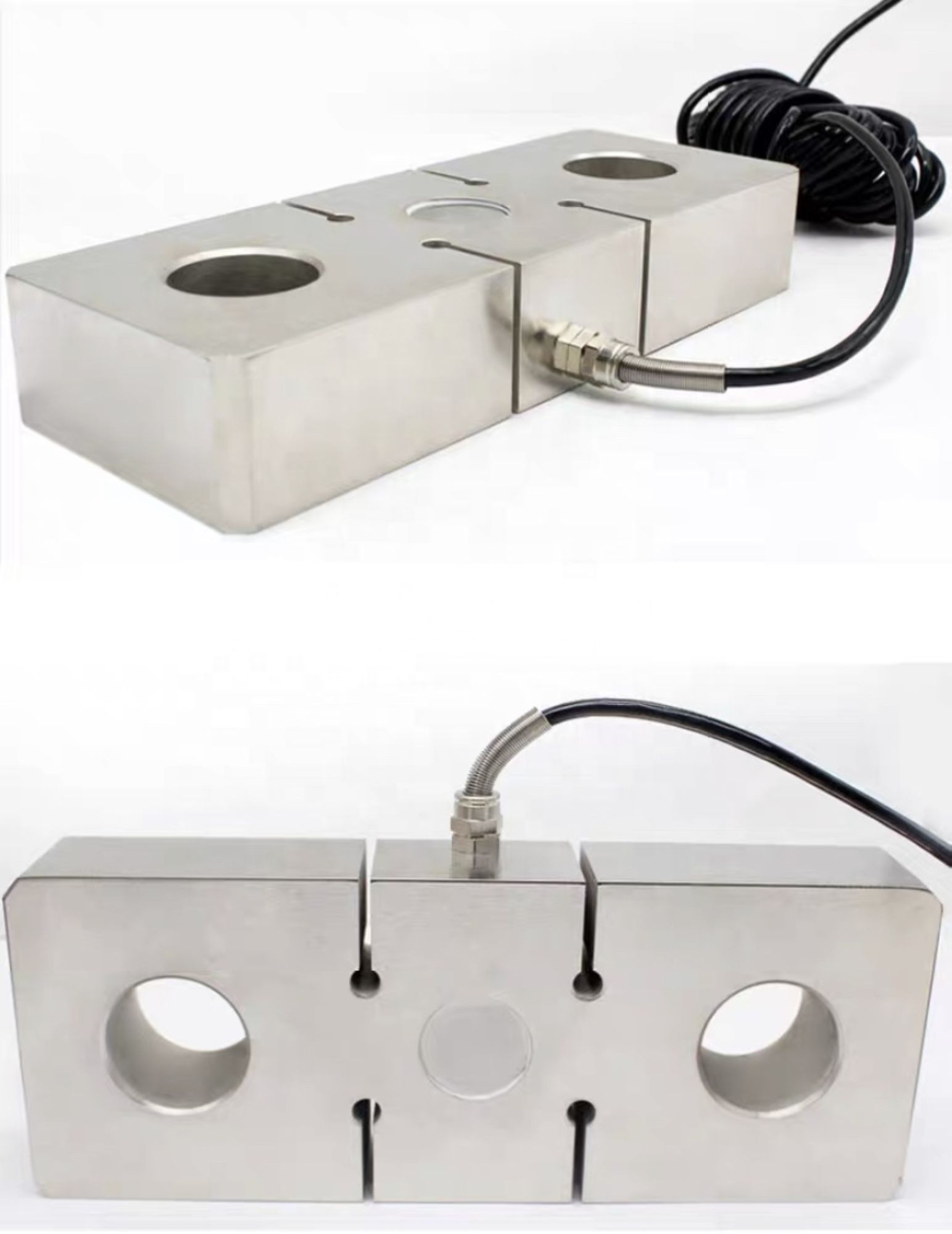

Shear beam load cell, most of them are rectangular in shape, with the strain area in the middle of the sensor. Theshearbeam load cell has the characteristics of simple structure, convenient installation, reliable use, long service life and high cost performance.
Applications:
Hopper scale, packing scale, hook scale, belt scale, insertion and withdrawal force tester, force value tester.
Specifications:
|
Capacity
|
0-100 Ton
|
|
Rated Output
|
2.0±0.05mV/V
|
|
Zero Balance
|
±1% F.S.
|
|
Non-linearity
|
0.3%F.S.
|
|
Hysteresis
|
0.3%F.S.
|
|
Repeatability
|
0.1%F.S.
|
|
Creep(30min)
|
0.1%F.S.
|
|
Temp.effect on output
|
0.05% F.S. / 10ºC
|
|
Temp.effect on zero
|
0.05% F.S. / 10ºC
|
|
Material
|
Alloy steel
|
|
Operating Voltage Range
|
5-15V
|
|
Operating Temp Range
|
-20-60℃
|
|
Safe overload
|
150%
|
|
Maximum Overload
|
300%
|
|
Cable size
|
Φ5*3m
|
|
Cable ultimate pull
|
10kg
|
Competitive Advantage:
Compact structure,easy to install,reliable to use, long service life, high cost performance.
