Jiangxi SOP Precision Intelligent Manufacturing Technology Co.,Ltd.
Jiangxi SOP Precision Intelligent Manufacturing Technology Co.,Ltd.
| Place of Origin: | China |
| Brand Name: | SOP |
| Model Number: | SOPN-200 |
| Minimum Order Quantity: | 1pc |
| Packaging Details: | Paper box |
| Delivery Time: | 3 days |
| Payment Terms: | TT |
| Supply Ability: | 300pcs per day |
Quick Detail:
1. Display the current measured torque value and speed value in real time.
2. The current power value can be directly calculated.
3. Supports RS485 communication and active upload protocol.
4. The communication speed can reach 500 or 1000 times per second.
5. This sensor supports simultaneous output of transmitting current and voltage.
6. The sensor comes with an OLED display, with a resolution of 128 * 64.
7. Simple calibration, zeroing, filtering, and other operations can be performed.
8. Allow the sensor to overload by 200%.
9. Achieved accuracy of over 1/1000 and excellent zero point stability.
Description:

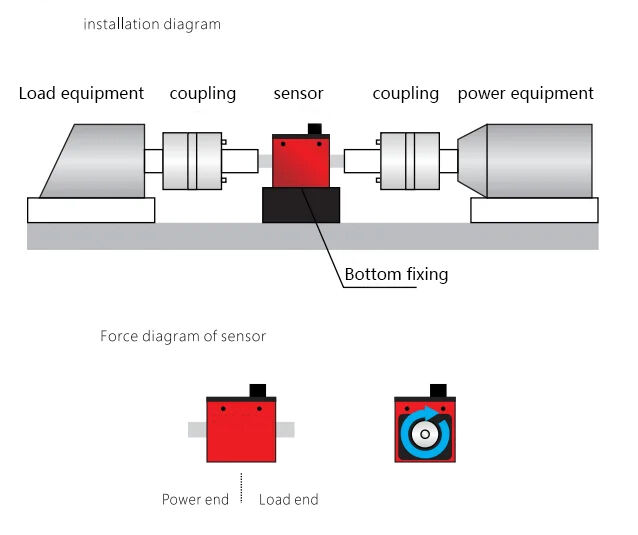

Torque sensorsissuitable for rotating torque measurement in clockwise and counterclockwise directions. The sensor is mounted between the motor and the load via a coupling, with the housing remaining stationary during measurement and the shaft rotating with the motor shaft. Customized services are available for other measurement ranges with similar configurations. The compact construction makes the sensors particularly suitable for use in applications where installation space is limited.
Applications:
The scope of application is very wide, mainly used for:
1. Testing the output torque and power of rotating power equipment such as motors, engines, internal combustion engines;
2. Testing the torque and power of fans, water pumps, gearboxes, and torque wrenches;
3. Railway locomotives , Torque and power detection in automobiles, tractors, airplanes, ships, and mining machinery;
4. Can be used for torque and power detection in sewage treatment systems;
5. Can be used to manufacture viscometers;
6. Can be used in process industries and processesin industry
Specifications:
| Capacity | ±20000N. m |
| Speed Signal | ≤15000rpm |
| Zero Balance | ±0.05%F.S. |
| Non-Linearity | 0.1%F.S. |
| Hysteresis | 0.5%F.S. |
| Repeatability | 0.05%F.S. |
| Creep(30min) | 0.03%F.S. |
| Temp Effect on Output | 0.05%F.S./10℃ |
| Temp Effect on Zero | 0.05%F.S./10℃ |
| Response Time | 0.6ms (50% reaction) |
| Response Frequency | 1kHz |
| Display Range | -99999-99999 |
| Maximum torsion angle | 2.60x10rad(0.149°) |
| Moment of inertia | Stainless steel |
| Natural frequency of rotor vibration | 19.4kHz |
| Torsion constant | 3.85x10Nm/rad |
| Material | stainless steel |
| Load resistance | >2kΩ |
| Operating Temp Range | DC 24V 0.2A |
| Current Consumption | <150mA |
| Work Environment | -10-50℃ 0-85%RH |
| Safe Overload | 150% |
| Cable Specifications | φ5x3m |
| Cable ultimate pull | 10kg |
