Jiangxi SOP Precision Intelligent Manufacturing Technology Co.,Ltd.
Jiangxi SOP Precision Intelligent Manufacturing Technology Co.,Ltd.
| Place of Origin: | Jiangxi,China |
| Brand Name: | SOP |
| Model Number: | SOPHW-116 |
| Application: | Force measurement |
| Minimum Order Quantity: | 1 piece |
| Packaging Details: | To be packed with small box. |
| Delivery Time: | 3-5 working days after shipment by Express |
| Payment Terms: | T/T,Wechat |
Description：

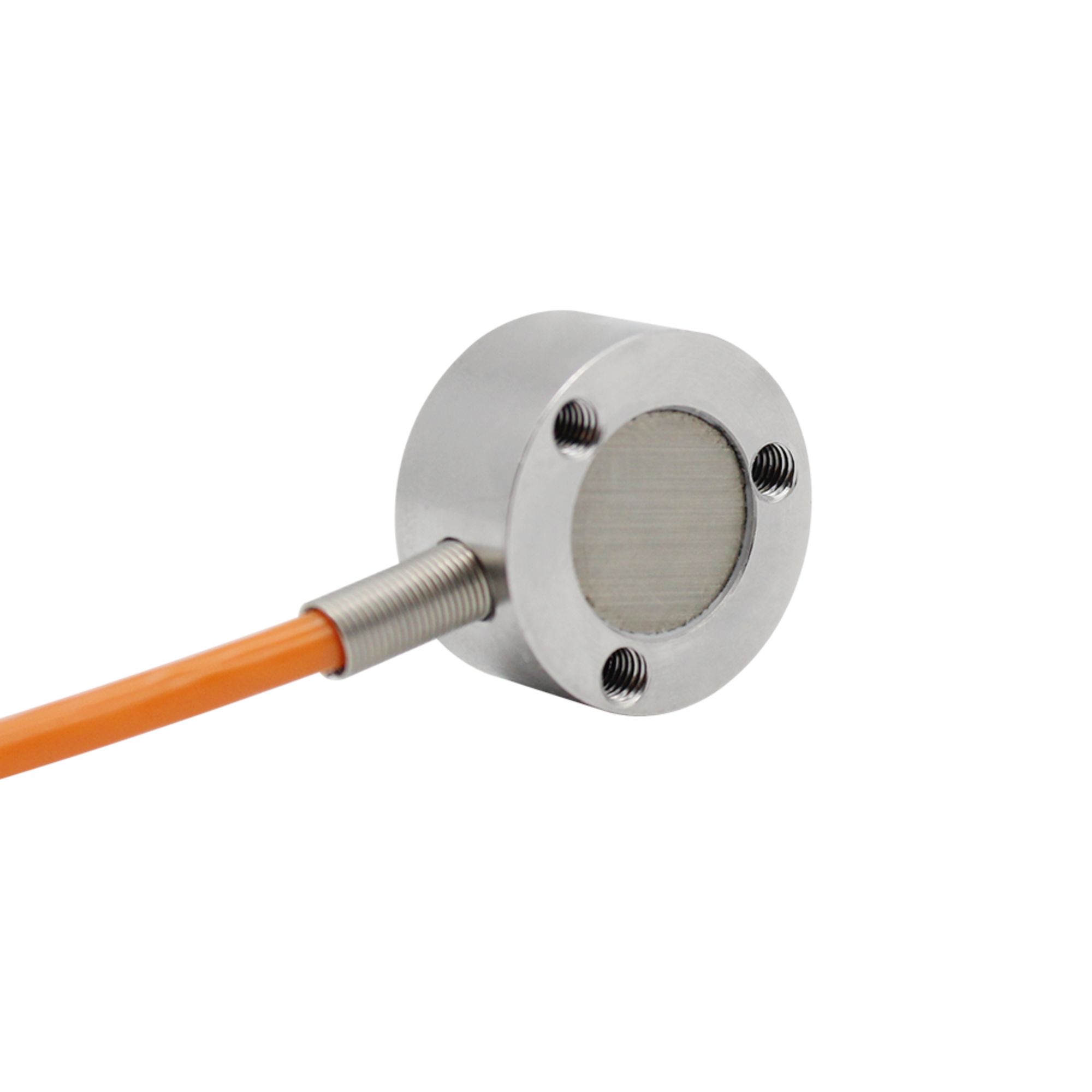

The load cell beam body is made of stainless steel, with IP65 protection level, low drift, compact structure, light weight, high precision, fast response, long service life and strong anti-interference ability.
Specifications：
| Capacity | 0-10T |
| Rated Output | 1.0-2.0mV/V |
| Zero Balance | ±1% F.S. |
| Non-linearity | 0.3%F.S. |
| Hysteresis | 0.3%F.S. |
| Repeatability | 0.3%F.S. |
| Creep(30min) | 0.1%F.S. |
| Temp.effect on output | 0.3% F.S. / 10ºC |
| Temp.effect on zero | 0.3% F.S. / 10ºC |
| Material | Stainless steel |
| Operating Voltage Range | 5-10V |
| Operating Temp Range | -20-80℃ |
| Safe overload | 150% |
| Maximum Overload | 200% |
| Cable size | Φ3*2m Φ5*2m(10T) |
| Cable ultimate pull | 10kg |
Applications:
